BUSHING 2SN DN 10

BUSHING 2SN DN 10

Working Pressure: 10 bar (1.0 MPa) |. Bursting Pressure: 63 bar (6.3 MPa) |. Available colors: black or blue | Working Temperature: -40°C to +93°C

Hoses are characterized by high oil resistance. APPLICATION The hose is designed for the flow of oily air in the air brake systems of motor vehicles and trailers. CONSTRUCTION Made in accordance with PN-83/C-94251 and ZN-4/02/BZPG standards. Inner layer High-quality NBR/SBR rubber compound resistant to mineral oil. Reinforcement High-strength synthetic threads. Outer layer Black colored rubber with bandage imprint resistant to oil and weather and ozone. SIGNING Hoses marked with a white print.

Straight Fittings (male) for Hydraulic Hoses DN 12, metric thread, M22x1.5 female, 24° cone Sealings, no O-ring

Fittings P11- 13 M22x1.5 straight crimp (male) for Hydraulic Hoses DN 12, metric thread, female M22x1.5, 24° cone sealing, without oring

Fittings (female) for HYDRAULIC HOSES DN 6, angled 90°, with M14x1.5 female thread, 24° cone seals, without oring

Fittings P12- 06. M14x1.5 L (angle 90) Fittings (female) for Hydraulic Hoses DN 6, angle 90°, with M14x1.5 female thread, 24° cone sealing, without o-ring.

Fittings (male) for Hydraulic Hoses DN 10, metric thread, external M18x1.5 with 24° socket.

Fittings P21 10 12L M18x1.5 Fittings (male) for Hydraulic Hoses DN 10, metric thread, external M18x1.5 with 24° socket.

Fittings for Hydraulic Hose DN 6, straight, with female thread (nut) ORFS 9/16 "x18 and double key holder, face sealings

Fittings for Hydraulic Hose DN 6, straight, with female thread (nut) ORFS 9/16 "x18 and double key holder, face sealings

Hose Fittings for Hydraulic Hoses DN 6, angled 90°, with female thread (nut), inch BSP 3/8", 60° cone seals.

FITTINGS U06BF90S04 Fittings for HYDRAULIC HOSES DN 6, angled 90°, with female thread (nut), inch BSP 3/8", 60° cone seals.

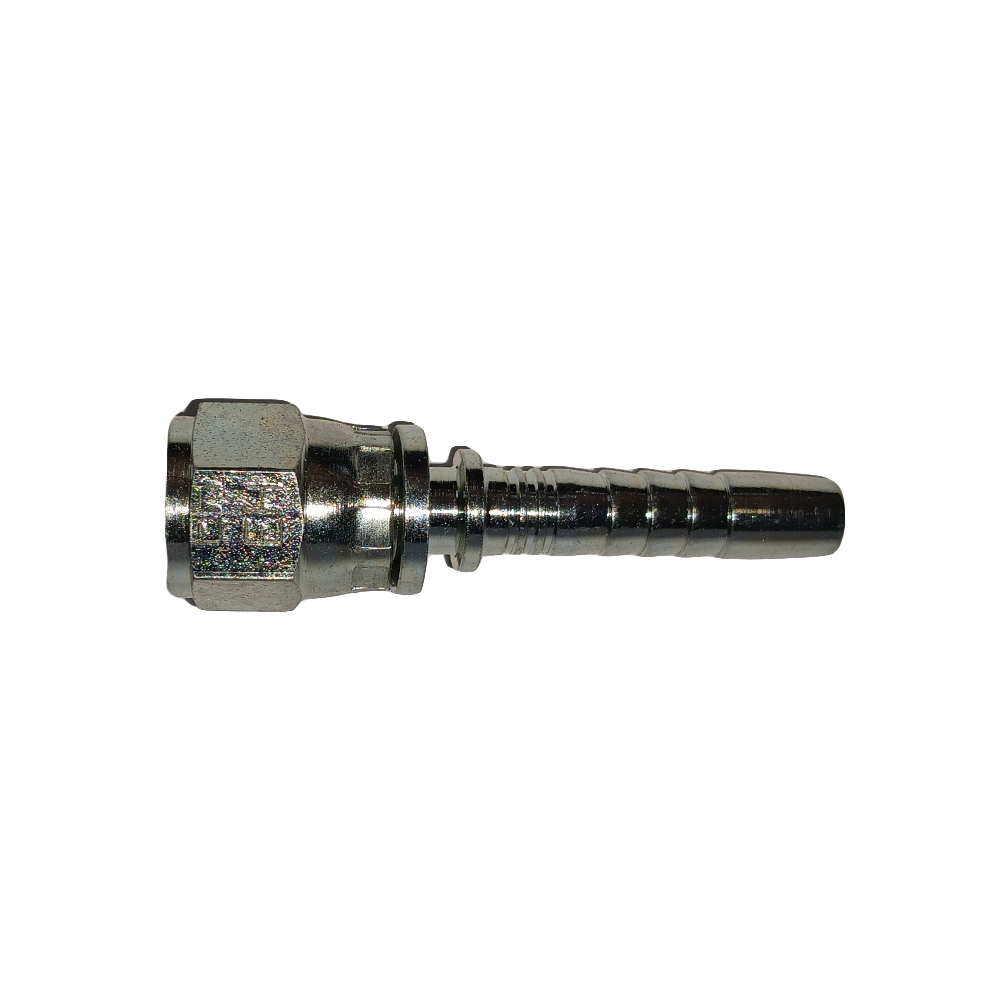

Fittings for HYDRAULIC HOSES DN 6, straight, with JIC (UNF) 7/16 "x20 female thread (nut), C91, DKJ, 74° sealing.

FITTINGS U07JF04 Fittings for HYDRAULIC HOSES DN 6, straight, with JIC (UNF) 7/16 "x20 female thread (nut), C91, DKJ, 74° sealing.

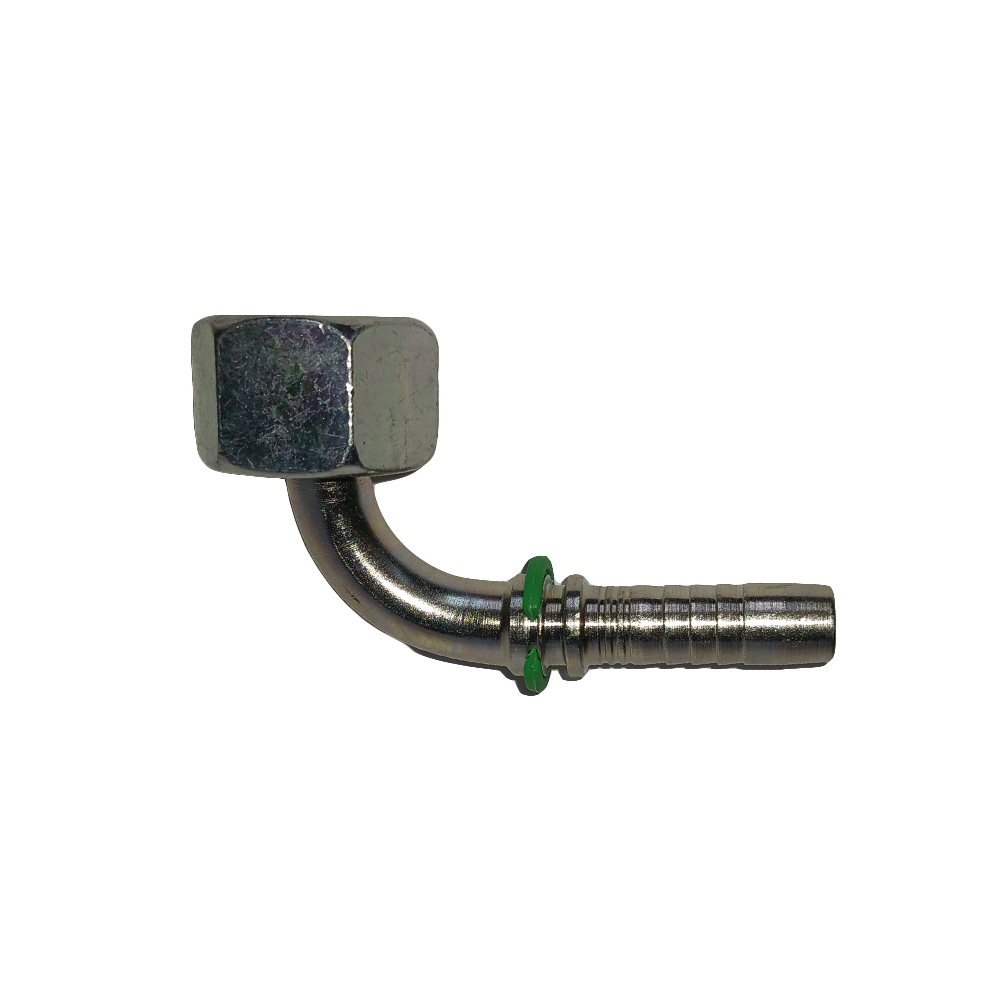

Fittings for HYDRAULIC HOSES DN 10, angled 90°, with internal thread (nut), inch BSP 1/2", 60° cone seals.

FITTINGS U08BF90S06 Fittings for HYDRAULIC HOSES DN 10, 90° angle, with internal thread (nut), 1/2" inch BSP, 60° cone seals.

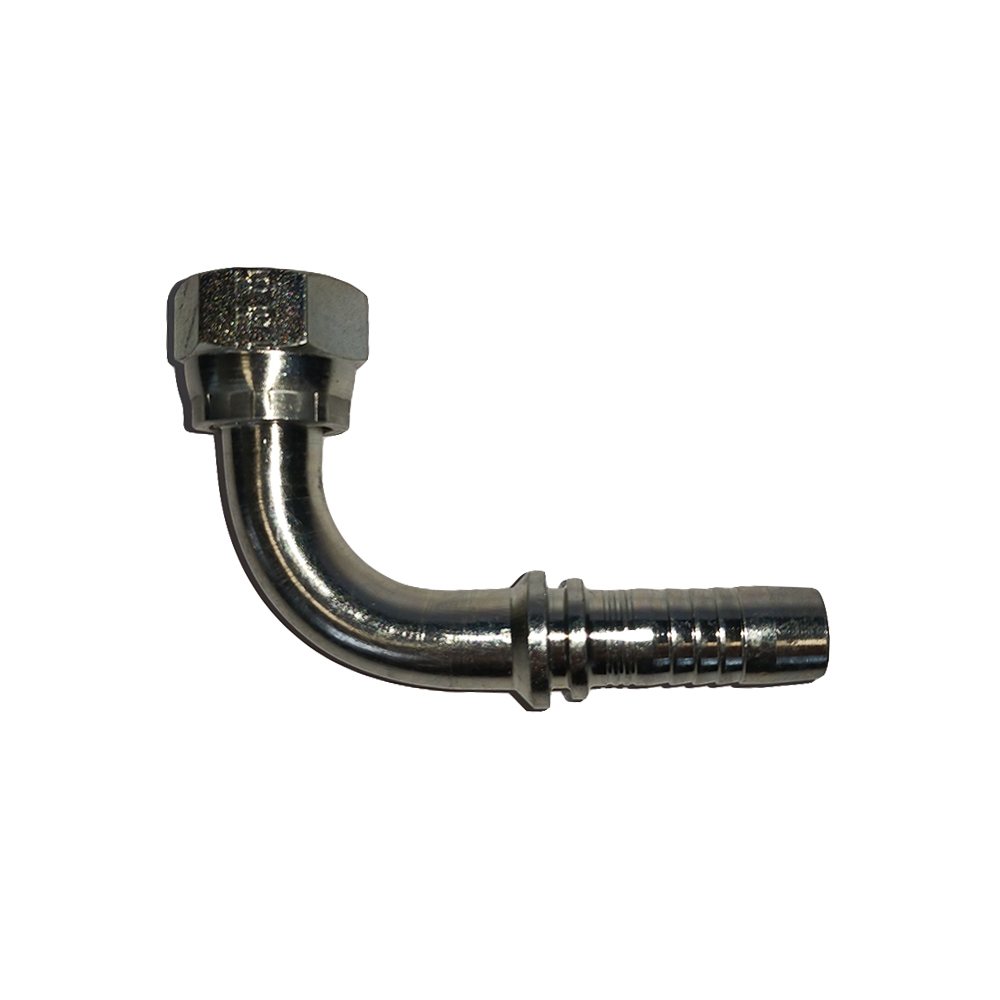

Fittings for Hydraulic Hoses DN 12, angled 90°, with female thread (nut) ORFS 13/16 "x16, face sealings

FITTINGS U08ORF90S08 Crimp for Hydraulic Hoses DN 12, 90° angle, with female thread (nut) ORFS 13/16 "x16, face sealings

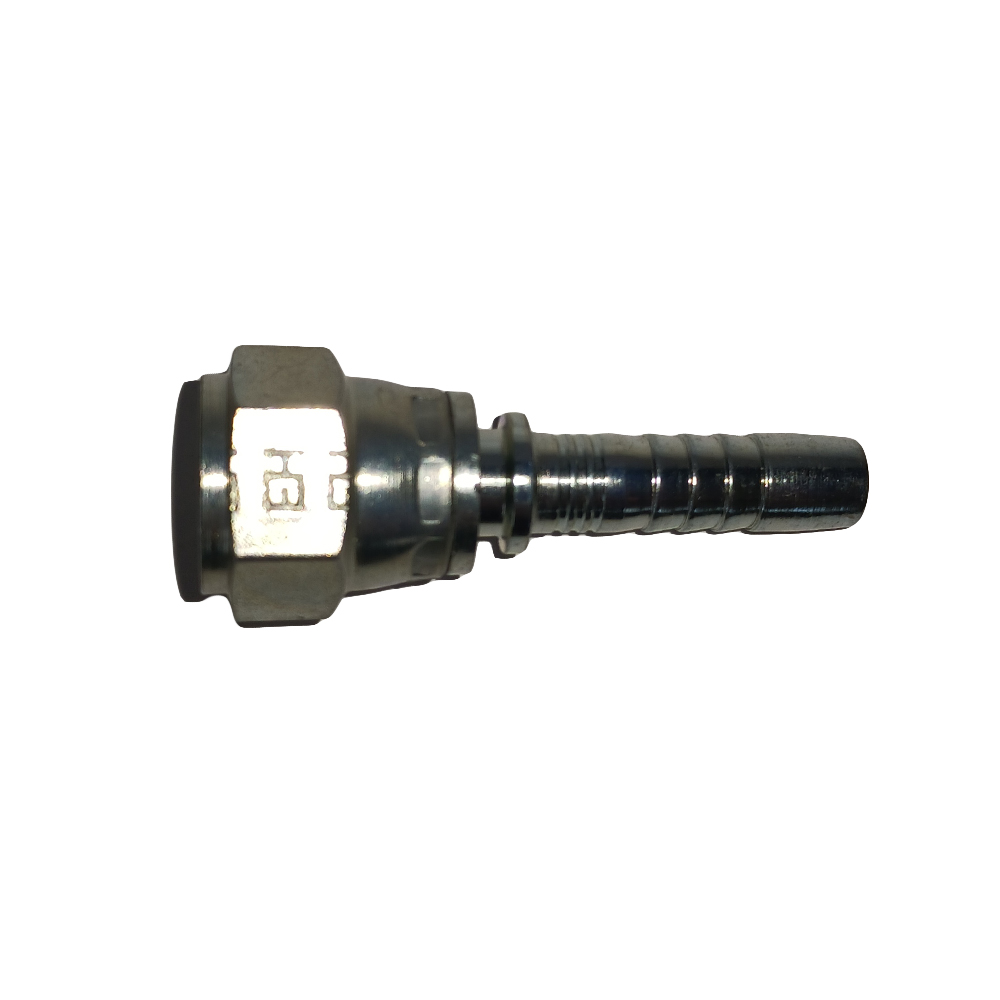

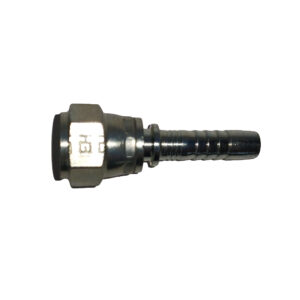

Fittings for HYDRAULIC HOSES DN 8, straight, with female thread (nut) JIC (UNF) 9/16 "x18, C91, DKJ, 74° sealing.

FITTINGS U09JF05 Fittings for HYDRAULIC HOSES DN 8, straight, with female thread (nut) JIC (UNF) 9/16 "x18, C91, DKJ, 74° sealing.

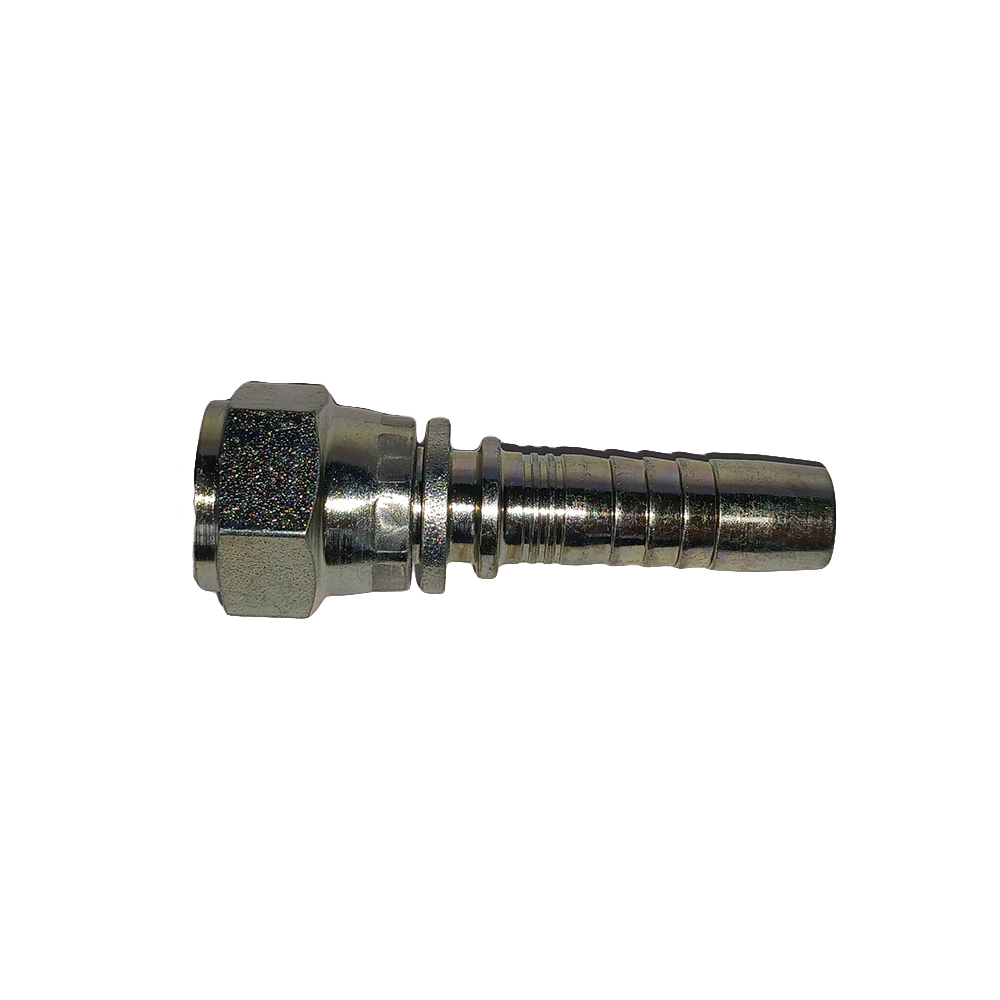

Fittings for Hydraulic Hoses DN 10, straight, with female thread (nut) JIC (UNF) 9/16 "x18, C91, DKJ, 74° sealing.

FITTINGS U09JF06 Fittings for Hydraulic Hoses DN 10, straight, with female thread (nut) JIC (UNF) 9/16 "x18, C91, DKJ, Sealings 74°.
