HYDRAULIC HOSES

Working Pressure: 63 bar | Hoses in Promotions (for Mining): mm: 31 | Nominal Diameter Inch: 1 ¼” | Smallest bend radius: 420mm | Weight: 1.19 kg/m

APPLICATION Specialty flame retardant and anti-electrostatic hoses dedicated to Mining. MSHA approved anti-electrostatic and flame retardant. Meeting mining requirements, for machinery and equipment operating under high pressure in underground workings of mining plants. Designed to work in areas at risk of methane and coal dust explosion. Hoses can be used for : - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not designed for fluids containing castor oil and esters. Working Pressures From 63 to 250 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 853, ISO 6805, PN-G-32010 standards Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement One Wire Braided high strength steel wire. Outer layer Black colored rubber made of synthetic rubber flame retardant and anti-electrostatic, resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. CERTIFICATES : A certificate authorizing the marking of the product with a safety mark confirming its application to supply and drainage systems of machinery and equipment operating under high pressure in underground workings of mining plants in non-methane and methane fields classified as grade «A» or «B» coal dust explosion hazard. Certificate confirming the use of Hoses in underground mines MSHA (USA). Also check out HYDRAULIC Hoses: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses, Hoses for Mining

Working Pressures: from 88 to 225 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

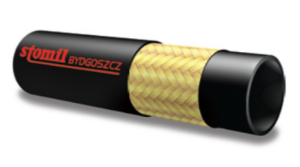

APPLICATION Compact Hoses of general purpose used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 88 to 225 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 857 standard. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement One Wire Braided high strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: from 165 to 400 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

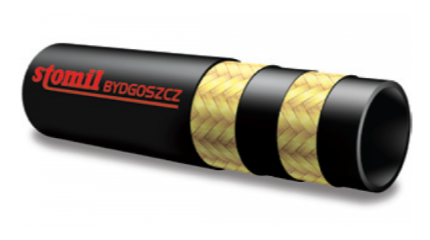

APPLICATION Compact Hoses of general purpose used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 165 to 400 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 857 standard. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 2 Wire Braided with high-strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: 125 to 415 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

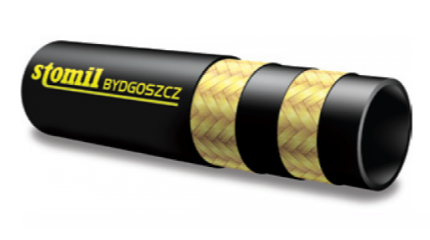

APPLICATION General purpose Hoses used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 125 to 415 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 853, SAE J517 standards. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 2 Wire Braided with high-strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: from 63 to 250 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

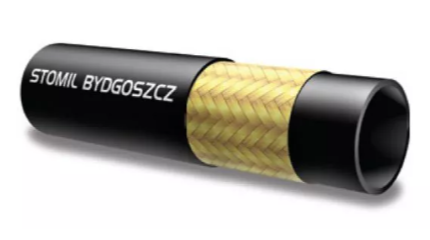

APPLICATION General purpose Hoses used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 63 to 250 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 853, SAE J517 standards. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement One Wire Braided high strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: 200 to 450 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

APPLICATION Compact Hoses two-pass hoses with superior flexibility and much higher pressure performance compared to 2 SC hoses. They are commonly used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 200 to 450 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Exceeding the requirements of EN 857 for Working Pressure and Bursting Pressure. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 2 Wire Braided with high-strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: from 63 to 225 bar depending on diameter | Working Temperature: from -20°C to +150°C

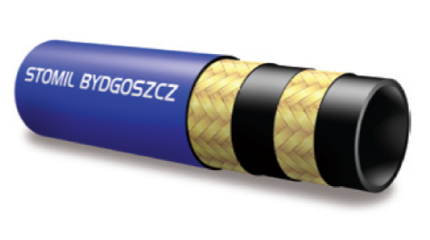

APPLICATION Specialized Hoses designed for high-pressure cleaning with water and high-temperature cleaning solutions. Hoses can be used: - for KÄRCHER-type washing equipment in car and van washes and rail vehicle washes, - for stationary hot water high-pressure cleaning installations (cleaning units, vacuum cleaners, etc.). Hoses are not intended for transmission of drinking water and steam. Working Pressures From 63 to 225 bar, depending on the diameter. Working Temperature From -20°C to +150°C CONSTRUCTION Made according to the author's design of Stomil Bydgoszcz (ZN-10/13/BZPG). All dimensions of the hose are in accordance with the requirements of EN 853. Bursting Pressure and Pulsating Pressure in accordance with the requirements of EN 1829-2. Inner layer Black colored rubber made of synthetic rubber resistant to water and high temperature cleaning solutions. Reinforcement One Wire Braided high strength steel wire. Outer layer Synthetic rubber rubber resistant to abrasion, oil, weather and ozone. Hoses offered in black, red or blue. Hoses can be produced in other colors upon request. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: 125 to 400 bar depending on diameter | Working Temperature: from -20°C to +150°C

APPLICATION Specialized Hoses designed for high-pressure cleaning with water and high-temperature cleaning solutions. Hoses can be used: - for KÄRCHER-type washing equipment in car and van washes and rail vehicle washes, - for stationary hot water high-pressure cleaning installations (cleaning units, vacuum cleaners, etc.). Hoses are not intended for transmission of drinking water and steam. Working Pressures From 125 to 400 bar, depending on the diameter. Working Temperature From -20°C to +150°C CONSTRUCTION Made according to the author's design of Stomil Bydgoszcz (ZN-10/13/BZPG). All dimensions of the hose are in accordance with the requirements of EN 853. Bursting Pressure and Pulsating Pressure in accordance with the requirements of EN 1829-2. Inner layer Black colored rubber made of synthetic rubber resistant to water and high temperature cleaning solutions. Reinforcement 2 Wire Braided with high-strength steel wire. Outer layer Synthetic rubber rubber resistant to abrasion, oil, weather and ozone. Hoses offered in black, red or blue. Hoses can be produced in other colors upon request. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

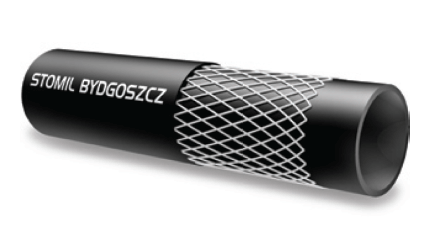

APPLICATION Very flexible and lightweight general purpose Hoses used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 16 to 25 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 854 standards. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement One Wire Braided high-strength synthetic fiber. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone.

Working Pressures: 40 to 80 bar depending on the diameter |. Working Temperature: From -40°C to +100°C; short-term up to +125°C

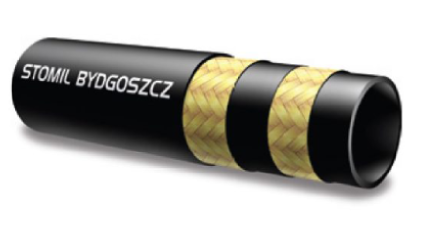

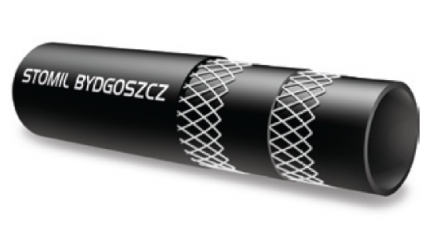

APPLICATION Very flexible and lightweight general purpose Hoses used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 40 to 80 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 854 standards. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 2 Wire Braided with high-strength synthetic fiber. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: 210 to 420 bar depending on the diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

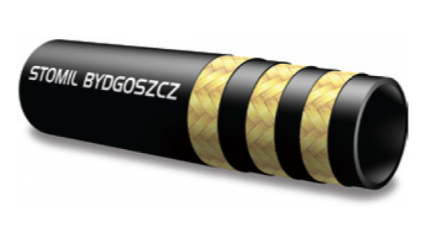

APPLICATION Hoses are equivalent to 4SP hoses manufactured to EN 856. They are characterized by a very high resistance to Working Pressure and significantly higher flexibility compared to 4SP hoses, which makes them incredibly convenient for use in tight spaces. Widely used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 210 to 420 bar depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION According to the author's Stomil Bydgoszcz ZN-5/13/BZPG project. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 3 Wire Braided with high strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.
