INDUSTRIAL HOSES

Working Pressure: 10 bar (1.0 MPa) |. Bursting Pressure: 63 bar (6.3 MPa) |. Available colors: black or blue | Working Temperature: -40°C to +93°C

Hoses are characterized by high oil resistance. APPLICATION The hose is designed for the flow of oily air in the air brake systems of motor vehicles and trailers. CONSTRUCTION Made in accordance with PN-83/C-94251 and ZN-4/02/BZPG standards. Inner layer High-quality NBR/SBR rubber compound resistant to mineral oil. Reinforcement High-strength synthetic threads. Outer layer Black colored rubber with bandage imprint resistant to oil and weather and ozone. SIGNING Hoses marked with a white print.

Working Pressure: 10 bar (1.0 MPa) |. Bursting Pressure: 30 bar (3.0 MPa) | antistatic | antistatic | antistatic. Working Temperature: -30°C to +100°C for oil; -30°C to +45°C for gasoline.

CHARACTERISTICS Working Pressure - 10 bar (1.0 MPa) Bursting Pressure - 30 bar (3.0 MPa) Anti-electrostatic APPLICATION Antistatic hose commonly used for transfer of conventional fuels (gasoline), diesel fuel, biodiesel, bioethanol and oils. Hoses are weatherproof and ozone resistant. Working Temperature From -30°C to +100°C for oil From -30°C to +45°C for gasoline CONSTRUCTION Made according to Stomil's proprietary design WT-33/15-1/BZPG. In addition, the hose meets the requirements of EN 1360 in terms of chemical resistance. Inner layer High-quality NBR rubber compound resistant to oils and fuels containing 15% oxygenated compounds and biodiesel - a mixture of diesel 80% with fatty acid esters (biocomponents) 20%. Reinforcement Braided with high-strength synthetic threads. Outer layer High-quality smooth, anti-electrostatic black colored synthetic rubber, resistant to fuel and oil, as well as abrasion and weathering and ozone. SIGNING Hoses marked with white paint.

Working Pressure: 20 bar (2.0 MPa) |. Bursting Pressure: 60 bar (6.0 MPa) | antistatic | antistatic | antistatic. Working Temperature: From -30°C to +100°C for oils, biodiesel, bioethanol; from -30°C to +45°C for gasoline

CHARACTERISTICS Working Pressure - 20 bar (2.0 MPa) Bursting Pressure - 60 bar (6.0 MPa) Anti-electrostatic APPLICATION Anti-static hose commonly used for transfer of conventional fuels (gasoline), biodiesel, bioethanol and oils, including diesel. The hose is weatherproof and ozone resistant. On request, we make additional protection of Hoses with an external wire spiral to protect against deformation and excessive abrasion of the outer layer. Services offered for Hoses with a diameter of DN12.5 and larger. Working Temperature From -30°C to +100°C for oils, biodiesel, bioethanol From -30°C to +45°C for gasoline CONSTRUCTION Made according to Stomil WT-33/BZPG's proprietary design. In addition, the hose meets the requirements of EN 1360 in terms of chemical resistance. Inner layer High-quality NBR rubber compound resistant to oils and fuels containing 15% oxygenated compounds and biodiesel - a mixture of diesel 80% with fatty acid esters (biocomponents) 20%. Reinforcement Braided with synthetic threads or high-strength cord. Outer layer High-quality antistatic black colored synthetic rubber, resistant to fuels and oils, as well as to abrasion and weathering and ozone. Hoses surface smooth up to a diameter of DN 12.5, higher diameters with fabric imprint. SIGNING Diameters with a smooth surface are marked with white paint. Diameters with fabric imprint marked with orange tape.

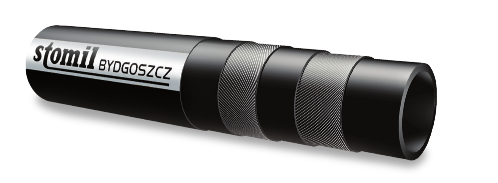

Working Pressure: 6 bar (0.6 MPa) |. Bursting Pressure: 20 bar (2.0 MPa) |. Working Temperature: from -35°C to +100°C

CHARACTERISTICS Working Pressure - 6 bar (0.6 MPa) Bursting Pressure - 20 bar (2.0 MPa) APPLICATION Hoses are designed for the flow of coolant in motor vehicles. Hoses are resistant to aqueous solutions of ethylene glycol, as well as to abrasion, weather conditions and ozone exposure. Due to its very good resistance to high temperatures, it is readily used as a hot water hose with temperatures up to 100°C. The hose is also available in Oil-Resistant version. On request, we can protect Hoses with cord-reinforced diameters with an additional outer wire spiral, designed to protect against deformation and excessive abrasion of the outer layer of the hose. Working Temperature From -35°C to +100°C CONSTRUCTION Made according to ZN-85/MPChiL-G/Bd-29 standard. Inner layer High-quality rubber compound resistant to ethylene glycol. Reinforcement High strength textile cord spacers. Outer layer High quality black colored rubber, weatherproof and ozone resistant. Hoses surface with fabric imprint. SIGNING Hoses marked with white tape.

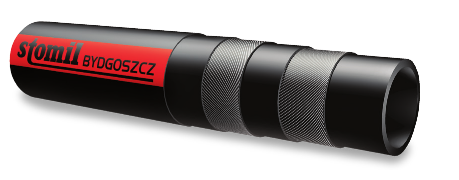

Working Pressure: 16 bar (1.6 MPa) |. Bursting Pressure: 45 bar (4.5 MPa) |. Abrasiveness: < 80 mm³ according to ISO 4649 | Working Temperature: -35°C to +60°C

CHARACTERISTICS Working Pressure - 16 bar (1.6 MPa) Bursting Pressure - 45 bar (4.5 MPa) Abrasiveness < 80 mm³ according to ISO 4649 APPLICATION Antistatic Abrasion Resistance Hose designed for the transfer of semi-liquid abrasive materials such as plaster, masonry mortar and concrete. Working Temperature From -35°C to +60°C CONSTRUCTION Made in accordance with the PN-75/C-94250/50 standard Inner layer High-quality NR/BR rubber compound with an Abrasion Resistance of 80 mm max.³. Reinforcement High strength textile cord spacers. Outer layer Black colored rubber with fabric imprint resistant to abrasion and weather and ozone. OPTIONAL A version with copper wire conductor is available on request. SIGNING Hoses marked with red tape.

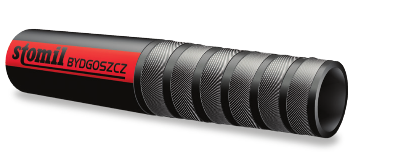

Working Pressure: 40 bar (4 MPa) |. Bursting Pressure: 100 bar (10 MPa) |. Abrasiveness: < 50 mm³ according to ISO 4649 | Working Temperature: -35°C to +60°C

CHARACTERISTICS Working Pressure - 40 bar (4 MPa) Bursting Pressure - 100 bar (10 MPa) Abrasiveness < 50 mm³ according to ISO 4649 APPLICATION Antistatic hose for plastering units with high Working Pressure and Abrasion Resistance. Hoses can also be used to transfer other abrasive materials, both semi-liquid, such concrete and mortar, and dry, such as sand and grit. Working Temperature From -35°C to +60°C CONSTRUCTION Made according to the author's STOMIL WT-53/BZPG design. Inner layer High-quality NR/BR rubber compound with Abrasion Resistance max. 50 mm³. Reinforcement High strength textile cord spacers. Outer layer Black colored rubber with fabric imprint resistant to abrasion and weather and ozone. OPTIONAL A version with copper wire conductor is available on request. SIGNING Hoses marked with red tape.

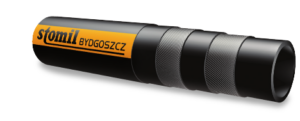

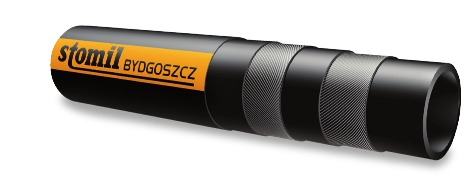

Working Pressure: 6 bar (0.6 MPa) |. Bursting Pressure: 19 bar (1.9 MPa) |. Working Temperature: From -30°C to +80°C (diesel up to +50°C)

CHARACTERISTICS Working Pressure - 6 bar (0.6 MPa) Bursting Pressure - 19 bar (1.9 MPa) APPLICATION Hose commonly used to transfer hydraulic oil, lubricating oil, diesel fuel (diesel), as well as oil and emulsion used in machining. It is also readily used in highly oily environments for the transfer of water and light chemicals. Hoses are weather and ozone resistant. On request, we make additional protection of Hoses with an external wire spiral, designed to protect against deformation and excessive abrasion of the outer layer. Services offered for Hoses from DN 12.5 upwards. Working Temperature From -30°C to +80°C (diesel up to +50°C) CONSTRUCTION Designed according to the author's Stomil Bydgoszcz WT-52/BZPG project. Inner layer High-quality oil-resistant NBR rubber compound. Reinforcement Braided textile cord or braided high-strength synthetic threads. Outer layer High-quality black-colored rubber made of synthetic rubber, resistant to abrasion and weathering and ozone. Hoses surface smooth up to a diameter of DN 12.5. Larger diameters with fabric imprint. SIGNING Smaller, smooth diameters are marked with white paint. Larger diameters with fabric imprint are marked with orange tape.

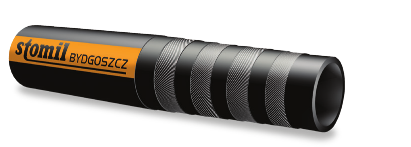

Working Pressure: 16 bar (1.6 MPa) |. Bursting Pressure: 50 bar (5.0 MPa) |. Working Temperature: From -30°C to +80°C (diesel up to +50°C)

CHARACTERISTICS Working Pressure - 16 bar (1.6 MPa) Bursting Pressure - 50 bar (5.0 MPa) APPLICATION Hose commonly used to transfer hydraulic oil, lubricating oil, diesel fuel (diesel), as well as oil and emulsion used in machining. It is also readily used in highly oily environments for the transfer of water and light chemicals. Hoses are weather and ozone resistant. On request, we make additional protection of Hoses with an external wire spiral, designed to protect against deformation and excessive abrasion of the outer layer. Services offered for Hoses from DN 12.5 upwards. Working Temperature From -30°C to +80°C (diesel up to +50°C) CONSTRUCTION Designed according to the author's Stomil Bydgoszcz WT-52/BZPG project. Inner layer High-quality oil-resistant NBR rubber compound. Reinforcement Braided textile cord or braided high-strength synthetic threads. Outer layer High-quality black-colored rubber made of synthetic rubber, resistant to abrasion and weathering and ozone. Hoses surface smooth up to a diameter of DN 12.5. Larger diameters with fabric imprint. SIGNING Smaller, smooth diameters are marked with white paint. Larger diameters with fabric imprint are marked with orange tape.

Working Pressure: 20 bar (2 MPa) | Bursting Pressure: 100 bar (10 MPa) |. Working Temperature: -30°C to +70°C

CHARACTERISTICS Working Pressure - 20 bar (2 MPa) Bursting Pressure - 100 bar (10 MPa)  APPLICATION Hoses are designed for the flow of hydrocarbon gases, i.e. propane, propane-butane and butane, as well as for filling and emptying tanks (including tank cars) with liquid LPG gas, which is a mixture of about 25% propane, 45% butane and about 30% isobutane). Working Temperature From -30°C to +70°C CONSTRUCTION Made according to the author's design ZN-1/99/BZPG. Inner layer High-quality NBR rubber compound impermeable to hydrocarbon gases. Reinforcement High-strength synthetic threads. Outer layer Flame retardant, black colored rubber with fabric imprint resistant to abrasion, and weather and ozone. SIGNING Hoses marked with a white print. RESISTANCE Electrical resistance (oblique) max. 10⁶ Ω/m.

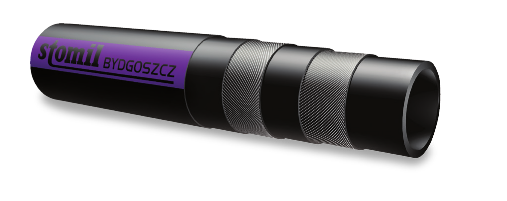

Working Pressure: 6 bar (0.6 MPa) |. Bursting Pressure: 16 bar (1.6 MPA) |. Working Temperature: From -30°C to +60°C

CHARACTERISTICS Working Pressure - 6 bar (0.6 MPa) Bursting Pressure - 16 bar (1.6 MPA) APPLICATION Hoses are designed for the flow of acids and bases: - nitric acid with a concentration of up to 5% - hydrochloric acid with concentration up to 20% - sulfuric acid with concentration up to 50% - acetic acid, aqueous sodium hydroxide solution and aqueous ammonia solution of any concentration. Hoses are abrasion, weather and ozone resistant. Upon request, we make additional protection of Hoses with an external wire spiral to protect against deformation and excessive abrasion of the outer layer. Working Temperature From -30°C to +60°C CONSTRUCTION Made according to the PN-86/C-94250/44 standard. Inner layer High-quality SBR rubber compound resistant to acids and alkalis. Reinforcement Synthetic threads or spacers made of high-strength synthetic cord. Outer layer Black colored SBR or SBR/EPDM rubber resistant to abrasion, weathering and ozone. Diameters up to DN 12.5 are smooth, larger ones with a fabric imprint.  SIGNING Diameters with a smooth surface are marked with white paint. Diameters with a fabric imprint are marked with purple tape.

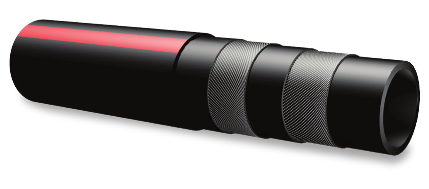

Working Pressure: 40 bar (4 MPa) |. Bursting Pressure: 160 bar (16 MPa) according to ISO 1401 |. Test pressure: 80 bar (8 MPa) according to PN-78/C-94250/49 |. Working Temperature: -30°C to +80°C

CHARACTERISTICS Working Pressure - 40 bar (4 MPa) Bursting Pressure - 160 bar (16 MPa) according to ISO 1401 Test pressure - 80 bar (8 MPa) according to PN-78/C-94250/49 APPLICATION Hoses are designed for high-pressure spraying with commonly used crop protection products, including but not limited to: 2% emulsion of Decis 2.5 EC 2% emulsion of liquid insectophos 50% Also gladly used for liquid fertilizers and other light chemicals used in Agriculture. Working Temperature From -30°C to +80°C CONSTRUCTION Made according to PN-78/C-94250/49 or ISO 1401 type B, depending on the diameter. Inner layer High-quality SBR rubber compound resistant to light chemicals. Reinforcement Synthetic threads or spacers made of high-strength textile cord. Outer layer Black colored rubber with fabric imprint resistant to oil and weather and ozone. SIGNING Hoses marked with red lettering above a continuous red stripe.

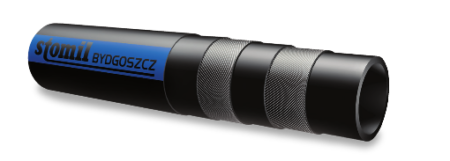

Working Pressure: 8 bar (0.8 MPa) up to diameter DN 55; 4 bar (0.4 MPa) from diameter DN 63 |. Safety factor: 4:1 | Abrasiveness: max. 80 mm³ according to ISO 4649 | Working Temperature: -30°C to +60°C Due to the very low stock of goods, we kindly ask you to contact our store (tel. 510 326 870, 510 326 664) to confirm the length of available sections of Hoses.

CHARACTERISTICS Working Pressure - 8 bar (0.8 MPa) up to diameter DN 55 - 4 bar (0.4 MPa) from DN 63 onward Safety factor 4:1 Abrasion - max 80 mm³ according to ISO 4649 APPLICATION This hose is designed for the transfer of abrasive materials such as sand, electrocorundum, slags, crushed rocks, cast iron and steel shot. Abrasiveness max 80 mm³ combined with use at Working Pressure of 8 and 4 bar guarantees a long hose life. On request, we make additional protection of Hoses with an external wire spiral, designed to protect against deformation and excessive abrasion of the outer layer. Working Temperature From -30°C to +60°C CONSTRUCTION Made according to the PN-78/C-94250/51 standard. Inner layer High-quality thickened rubber compound with an Abrasion Resistance of 80 mm max.³. Reinforcement High strength textile cord spacers. Outer layer Black colored rubber resistant to abrasion and weathering and ozone. Hoses surface with fabric imprint. OPTIONAL A version with copper wire conductor is available on request. SIGNING Hoses marked with blue tape.
