Rubber Sheeting

Hardness: 50 to 85°Sh | Chloroprene concentration: 6 or 12% |. Operating temperature: from -30 to 100°C | Available in sheet or roll | Thickness: 1 to 50mm

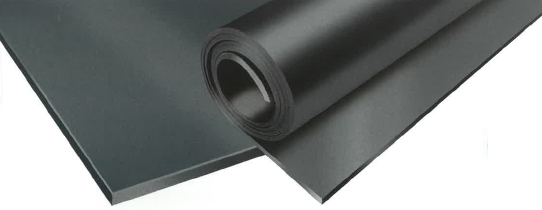

Chloroprene Sheets are made of butadiene-sterine rubber (SBR) and chloroprone (CR). Thanks to its special design, it has versatile properties. They are used as a protective coating in contact with less aggressive oils and other chemical liquids, while the increased resistance to thermal aging and low concentration ozone, also allows their use in outdoor applications.

Rubber Sheets hardness: 70+5^oSh | Operating temperature: -40 - 100^oC | Tensile strength: min 4.5 MPa | Available in roll | Thicknesses: 2mm

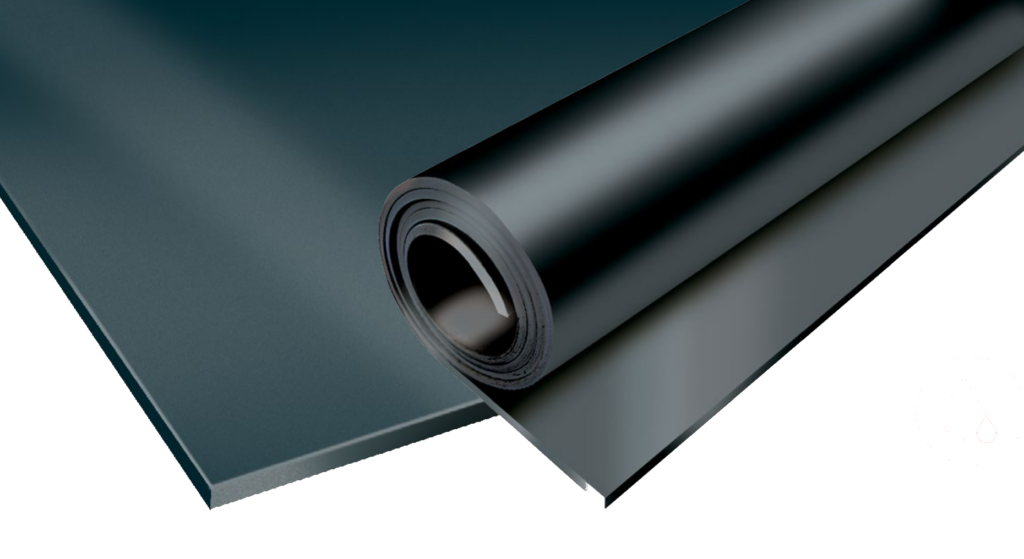

Railway Rubber Sheets are manufactured from the highest grade of EPDM rubber. They meet the very strict railroad standard EN 45545 in the class R22/R23 and HL 1-3 for materials showing high flame resistance, very low smoke generation and toxicity of the product. They are a semi-finished product for cutting SEALS working in rolling stock.

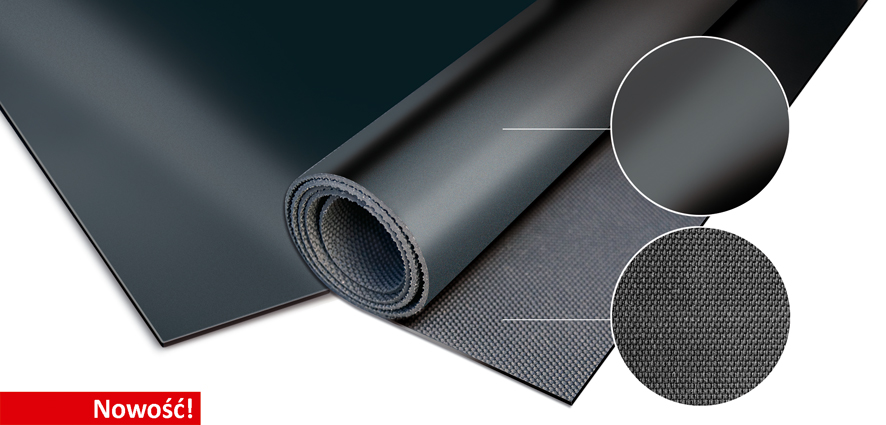

APPLICATIONS: - horizontal moisture insulation of buildings, - effective insulation of balconies and terraces, - protect the object in a permanent way against degradation caused by the harmful effects of weathering, - hydrophobic product PRODUCT ADVANTAGES:  EPDM rubber-based product,  PN-EN 14909:2012 compliance,  effective moisture protection, Good mechanical properties to protect the product from tearing,  Stretch product - making it easier to fit the shape of the product to the appropriate surface,  RUBBER SHEETS suitable for use in environments with different levels of corrosive exposure (temperature range: from - 40 C to 120 C,  An additional pattern on the surface makes it easier to install and prevents the material from shifting,  high quality product. Possibility to cut the product according to the individual customer's request as part of the provided CNC plotter cutting services.

Rubber Sheets hardness: 70+5^oSh | Operating temperature: -30 - 100^oC | Tensile strength: min 10 MPa | Available in roll | Thicknesses: 3mm

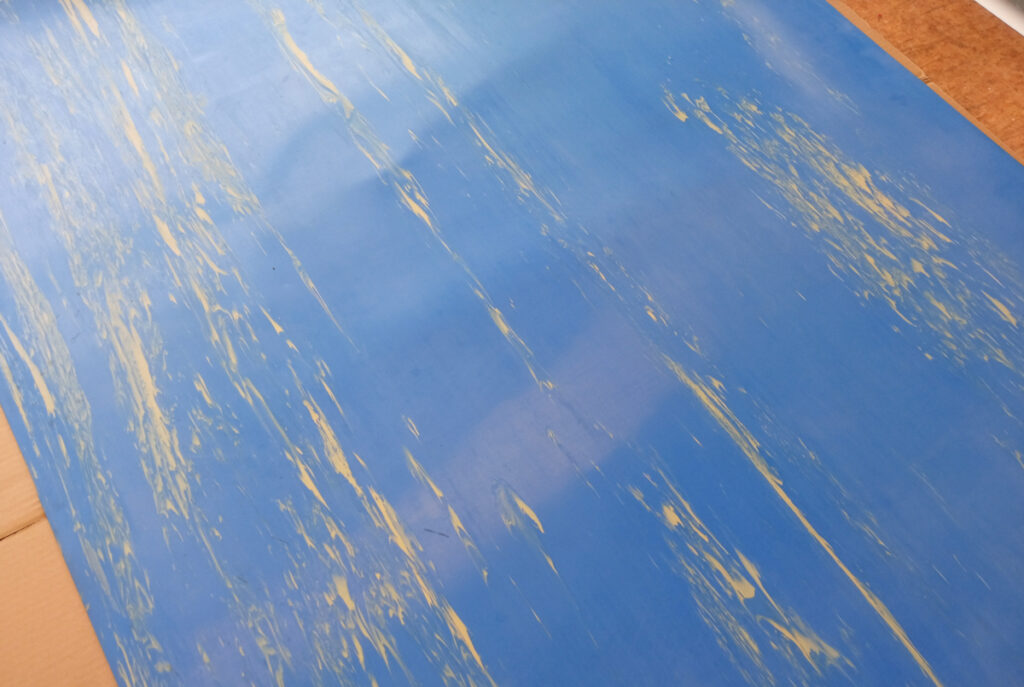

Marbled Rubber Sheets are scratch-resistant and used as workbench lining with high tensile and tear strength. They are characterized by high decorative qualities. They are manufactured from specialized acrylonitrile butadiene rubber ensuring high oil resistance of the board especially when using oily tools and contact with greases. The marbling pattern is unique to each roll.

Hardness: 65° Sh ( ± 5 ) |. Tensile strength: 10 Mpa |. Elongation at break: 300 % | Brittleness temperature: -25 °C | Abrasiveness: 0.220 cm3 | Dimensions: tailored to the customer's needs

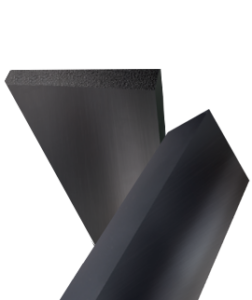

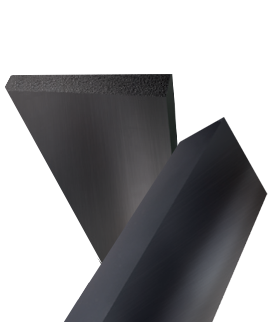

Plow Blade Sheets For agricultural and snow plows from a special rubber compound of appropriately adjusted hardness to ensure a certain flexibility of the product, characterized by Abrasion Resistance matched to the working conditions. A major advantage of our Plow Blade Sheets is the ability to manufacture them in long lengths which eliminates the process of joining from smaller pieces and facilitates their installation. Plow Blade Sheets with a fabric interlayer are also available, ensuring greater service life of the product. Technical parameters: Hardness: 65° Sh ( ± 5 ) Tensile strength: 10 Mpa Elongation at break: 300 % Brittleness temperature: -25 °C Abrasiveness: 0.220 cm3 Dimensions: tailored to the customer's needs

Rubber Sheets hardnesses: 40 to 90 °Sh |. Operating temperature: from -50 to 70°C | Available in sheet or roll | Thicknesses: 1 to 50 mm Click and check out the Sale of General Purpose SBR Rubber Sheets

Rubber Sheeting of general purpose rubber sheets They are designed to work in a chemically inert environment. They are manufactured on the basis of styrene-butadiene rubber -. SBR. They are typically used to produce SEALS and washers working in an unstretched state. Our range of general purpose Rubber Sheets includes the following products:

• Rubber Sheets with standard parameters
• RUBBER SHEETS with improved Abrasion Resistance (from 0.220 cm3 to 0.090 cm3).
• RUBBER SHEETS for low-temperature work (0.220 cc to 0.090 cc)
• Rubber Sheets resistant to swelling in dilute acids and alkalis

SBR Sheets

Our offer includes SBR Sheets with thicknesses 1 mm to 50 mm. Rubber Sheets manufactured from General Purpose SBR Rubber Sheets are not resistant to harsh weather conditions and ozone.

Technical parameters of SBR Sheets

Hardnessthese płyt: 40 to 90 °Sh Operating temperature: -50 to 70°C Supplypne in sheet or roll ThicknessThese: 1 to 50 mm Detailed information about available Rubber Sheets general purpose can be found under Technical parameters and PDF Materials.

Rubber Sheets hardness: from 50 to 80 °Sh | Operating temperature: from -40 to 100°C | Available in sheet or roll | Thicknesses: 1 to 50 mm

Oil-Resistant Rubber Sheets are manufactured from special acrylonitrile butadiene rubber - NBR. This rubber is produced in our plants from specially selected components that ensure the resistance of the products to various types of oils and gasoline n.p.:

• diesel
• mineral oils
• hydrocarbon-based lubricants
• Transformer oil (for NBR Sheets with improved oil resistance)
• 95 and 98 octane gasoline (for NBR Sheets with improved oil resistance).

Classification of Oil-Resistant Rubber Sheets

We classify Oil-Resistant Rubber Sheets according to their oil-resistance class:

• Low Oil Resistance- Swelling in less aggressive oil IRM 902 max +10% (test at 23°C for 24 hours)
• Medium oil resistance- Swelling in very aggressive oil IRM 903 max +35% (test at 100°C for 70 hours)
• High oil resistance- cracking in very aggressive oil IRM 903 max +30% (test at 100°C for 70 hours)

Additional properties of Oil-Resistant Rubber Sheets

Temperature resistance

As one of the few on the market, our Rubber Sheeting Are extremely resistant to high and low temperatures, can be used in the temperature range of -40 C to +100C, in the case of RUBBER SHEETS for transformer oil with hardness of 80+5Sh even up to 115C.

Wondering what to line your shop floor or worktop with? The advantages of using Oil-Resistant Rubber Sheets.

Oil-Resistant Rubber Sheets manufactured at Stomil Bydgoszcz also have increased resistance to aging. NBR rubber has anti-slip properties, lining the floor in the production hall will prevent mishaps due to slipping, and lining the work surface will prevent tools from slipping. Rubber Sheets are designed for use indoors, have limited weather and ozone resistance. We also produce special Rubber Sheets with increased resistance to: transformer oil and gasoline 95 and 98 octane.

Application of Oil-Resistant Rubber Sheets

Our NBR Sheets are used in virtually every industry, in oily areas, for example, in workshops and factories. They are used as:

• underlays or Rubber Flooring
• shims for various machines and equipment
• under workbenches
• They are also used in areas where oil- and petroleum-derived substances are possible, which may leak during the production process.

NBR rubber protects such areas from the formation of indelible dirt. So we can use them, for example, as covering of cabinets and workbenches or assembly tables. It not only protects them, but also improves the safety and convenience of the workstation.

NBR Sheets reinforced with textile spacers

We also offer Rubber Sheeting specially reinforced with textile spacers, which can be used as Anti-Slip Mats in the passages between production halls and in warehouses. We can use properly cut Rubber Sheets as protective mats on warehouse shelves. Oil-Resistant Rubber Sheets are very often used as a semi-finished product for the production of various types of rubber seals, which must be resistant to oil. We offer appropriate cutting services for such SEALS thanks to a modern plotter located in our facilities.

Technical parameters of Oil-Resistant Rubber Sheets

• Rubber Sheets hardnesses:50 to 80 °Sh
• Operating temperature: from -40 to 100°C

Rubber Sheets are available in our range of thicknesses. 1 mm to 50 mm. Our Rubber Sheets can be purchased in both rolls and sheets. Detailed information about available Rubber Sheets Oil-Resistant can be found under Technical parameters and PDF Materials.

Rubber Sheets hardness: 65 or 80 °Sh |. Operating temperature: from -18 to 115°C | Available in sheet or roll | Thicknesses: 1 to 50 mm

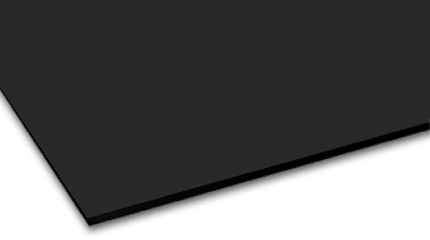

Rubber Sheets Oil-Resistant are made of acrylonitrile butadiene rubber (NBR) With enhanced resistance to transformer oil. Technical parameters: Rubber Sheets hardness: 65 or 80 °Sh Operating temperature: -18 to 115°C Available in sheet or roll Thicknesses: 1 to 50 mm Detailed information about available Rubber Sheets Oil-Resistant can be found under Technical parameters and PDF Materials.

Hardness: from 50 to 80 °Sh | Operating temperature: From -40 to 120°C (intermittent) |. Available in sheet or roll | Thicknesses: 1 to 50 mm

Rubber Sheeting EPDM Sheets Are made of ethylene-propylene-diene rubber. Due to their exceptional versatility, they are among the most frequently selected Rubber Sheets from Stomil Bydgoszcz's offer by our customers. RUBBER SHEETS (rubber) EPDM Sheets are resistant to many different factors:

• weather conditions and ozone
• heat aging
• abrasion, compression and permanent deformation
• diluted acids and bases
• Extremely high resistance to inorganic acids, such as sulfuric (VI) (H₂SO4) and bases such as sodium (NaOH)
• Relatively low resistance to organic acids, such as acetic acid (CH₃COOH)

Due to their exceptional properties and resistance to a variety of atmospheric and chemical agents, they are often used in many outdoor and indoor applications. Rubber Sheets are used to cover floors in fitness clubs, gyms and other places for physical activity, ensuring the comfort of the surfaces lined with Rubber Sheets.

Rubber Sheeting EPDM Sheets for surface lining and sealing

Rubber Sheets are also used for lining workbenches, sealing roofs and covering terraces. Elements cut from EPDM Sheets are perfect as splash pads used in the Automotive Industries or as covers on agricultural machinery. They are successfully used as floor linings around tanks with aggressive chemical liquids. Due to their unique properties and wide application, EPDM Sheets are often used in industries such as CONSTRUCTION, Agriculture and Forestry.

Technical parameters of EPDM rubber

• Hardśthese płyt: 50 to 80 °Sh
• Operating temperature:From -40 to 120°C (temporary)

Our offer includes Rubber Sheeting with thicknesses 1 mm to 50 mm. Our Rubber Sheets can be purchased in both rolls and sheets. Detailed information about available Rubber Sheets EPDM can be found under Technical parameters and PDF Materials .

Hardness: 45 °Sh |. Operating temperature: from -40 to 70°C | Color: cream | Available in roll | Thickness: 1 to 15 mm

Extremely Flexible Rubber Sheets pair made of natural rubber (NR) and styrene-butadiene (SBR) have very good physical and mechanical properties - high tensile strength (up to 15Mpa) and elongation at break. Rubber Sheets, thanks to the above-mentioned parameters, are used, among other things, as membrane seals. Technical parameters: Hardness: 45 °Sh Operating temperature: -40 to 70°C Color:  cream Available in roll Thickness: 1 to 15 mm Detailed information about available Rubber Sheets extremely flexible para can be found under Technical parameters and PDF Materials.

Hardness: 45 °Sh |. Operating temperature: from -40 to 70°C | Color: black | Available in roll | Thickness: 1 to 15 mm

Extremely Flexible Rubber Sheets pair made of natural rubber (NR) and styrene-butadiene (SBR) have very good physical and mechanical properties - high tensile strength (up to 15Mpa) and elongation at break. Rubber Sheets, thanks to the above-mentioned parameters, are used, among other things, as membrane seals. Technical parameters: Hardness: 45 °Sh Operating temperature: -40 to 70°C Color: black Available in roll Thickness: 1 to 15 mm Detailed information about available Rubber Sheets extremely flexible para can be found under Technical parameters and PDF Materials.

Hardness:  60 °Sh |. Operating temperature: from -40 to 70°C | Available in roll and sheet | Thickness: 1 to 50 mm

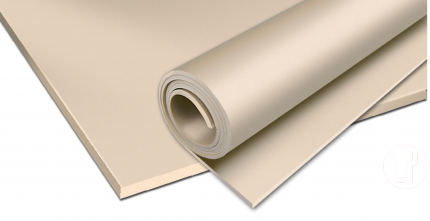

Rubber Sheeting intended for food contact  are used in a wide range of food industries, including fruit, vegetable, milk and meat processing. Rubber Sheets have a declaration of conformity with the regulations of the Federal Institute for Risk Assessment. (BfR). We offer Rubber Sheets CSS - for contact with food. Technical parameters: Hardness:  60 °Sh Operating temperature: -40 to 70°C Available in roll and sheet Thickness: 1 to 50 mm

Certificate of quality CSS 2021 - ATEST PZH

Quality certificate for the latest CSS Rubber Sheets:

• Rubber Sheets CSS gr.20mm dimensions 1000x1000mm
• Rubber Sheets CSS gr.30mm dimensions 1000x1000mm

Detailed information about available Rubber Sheets for contact with food  can be found under Technical parameters and PDF Materials.
