Agriculture

Working Pressure: 40 bar (4 MPa) |. Bursting Pressure: 160 bar (16 MPa) according to ISO 1401 |. Test pressure: 80 bar (8 MPa) according to PN-78/C-94250/49 |. Working Temperature: -30°C to +80°C

CHARACTERISTICS Working Pressure - 40 bar (4 MPa) Bursting Pressure - 160 bar (16 MPa) according to ISO 1401 Test pressure - 80 bar (8 MPa) according to PN-78/C-94250/49 APPLICATION Hoses are designed for high-pressure spraying with commonly used crop protection products, including but not limited to: 2% emulsion of Decis 2.5 EC 2% emulsion of liquid insectophos 50% Also gladly used for liquid fertilizers and other light chemicals used in Agriculture. Working Temperature From -30°C to +80°C CONSTRUCTION Made according to PN-78/C-94250/49 or ISO 1401 type B, depending on the diameter. Inner layer High-quality SBR rubber compound resistant to light chemicals. Reinforcement Synthetic threads or spacers made of high-strength textile cord. Outer layer Black colored rubber with fabric imprint resistant to oil and weather and ozone. SIGNING Hoses marked with red lettering above a continuous red stripe.

Working Pressure: 6 bar (0.6 MPa) |. Bursting Pressure: 18 bar (1.8 MPa) |. Safety factor: 3:1 | Working Temperature: From -30°C to +80°C, briefly up to +100°C

CHARACTERISTICS Working Pressure - 6 bar (0.6 MPa) Bursting Pressure - 18 bar (1.8 MPa) Safety factor - 3:1 APPLICATION A reliable hose for water and light chemicals for general industrial and Agriculture applications, including irrigation and drainage systems. Also readily used for hot water cleaning of floors, walls and all kinds of equipment. Hoses are weatherproof and ozone resistant. On request, we can make a hose with increased abrasion resistance for mixtures of water with sand, silt or other substances with similar properties. On request, we make additional protection of Hoses with an external wire spiral to protect against deformation and excessive abrasion of the outer layer. This option applies to Hoses with nominal diameters larger than DN 12. Working Temperature From -30°C to +80°C Short-term up to +100°C CONSTRUCTION Hoses with a diameter up to DN 80 are made according to EN ISO 1403 (TYPE 1). Hoses with a diameter of DN 100 are made according to Stomil Bydgoszcz author's project WT-37/13/BZPG. Inner layer Black colored rubber made of SBR synthetic rubber resistant to hot water. Reinforcement Interleavers made of textile cord or high-strength synthetic threads. Outer layer Rubber made of SBR synthetic rubber of black color, resistant to abrasion and weathering and ozone. Up to a diameter of DN 12.5 the surface is smooth. Larger diameters with fabric imprint. SIGNING Diameters with a smooth surface are marked with white paint. Diameters with fabric imprint marked with green tape.

Working Pressure: 10 bar (1.0 MPa) |. Bursting Pressure: 30 bar (3.0 MPa) |. Safety factor: 3:1 | Working Temperature: From -30°C to +80°C; short-term up to +100°C

CHARACTERISTICS Working Pressure - 10 bar (1.0 MPa) Bursting Pressure - 30 bar (3.0 MPa) Safety factor - 3:1 APPLICATION A reliable hose for water and light chemicals for general industrial and Agriculture applications, including irrigation and drainage systems. It is also readily used for hot water cleaning of floors, walls and all kinds of equipment. Hoses are weatherproof and ozone resistant. On request, we can make a hose with increased abrasion resistance for mixtures of water with sand, silt or other substances with similar properties. Working Temperature From -30°C to +80°C Short-term up to +100°C CONSTRUCTION Hoses with a diameter up to DN 80 are made according to EN ISO 1403 (TYPE 2). Hoses with a diameter of DN 100 are made according to Stomil Bydgoszcz author's project WT-37/13/BZPG. Inner layer Black colored rubber made of SBR synthetic rubber resistant to hot water. Reinforcement Interleavers made of textile cord or high-strength synthetic threads. Outer layer Rubber made of SBR synthetic rubber of black color, resistant to abrasion and weathering and ozone. Up to a diameter of DN 12.5 the surface is smooth. Larger diameters with fabric imprint. SIGNING Diameters with a smooth surface are marked with white paint. Diameters with fabric imprint marked with green tape.

Working Pressure: 25 bar (2.5 MPa) |. Bursting Pressure: 100 bar (10 MPa) |. Safety factor: 4:1 | Working Temperature: From -30°C to +80°C; short-term up to +100°C

CHARACTERISTICS Working Pressure - 25 bar (2.5 MPa) Bursting Pressure - 100 bar (10 MPa) Safety factor of 4:1 APPLICATION A reliable hose for water and light chemicals of general industrial and Agriculture use for irrigation and drainage systems. Also readily used for hot water cleaning of floors, walls and all kinds of equipment. Hoses are weatherproof and ozone resistant. On request, we can make a hose with increased abrasion resistance for mixtures of water with sand, silt or other substances with similar properties. On request, we make additional protection of Hoses with an external wire spiral to protect against deformation and excessive abrasion of the outer layer. This option applies to Hoses with nominal diameters larger than DN 12. Working Temperature From -30°C to +80°C Short-term up to +100°C CONSTRUCTION Complies with PN-EN ISO 1403 (TYPE 3). Inner layer Black colored rubber made of SBR synthetic rubber resistant to hot water. Reinforcement Interleavers made of textile cord or high-strength synthetic threads. Outer layer Black colored SBR synthetic rubber rubber, abrasion and weather and ozone resistant. All diameters with fabric imprint. SIGNING Hoses are marked with green tape.

Working Temperature: From -25°C to +80°C; short-term up to +100°C

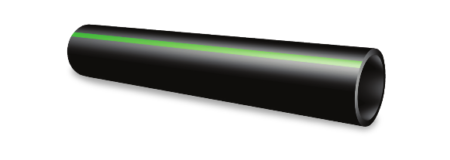

APPLICATION Hose for general-purpose water without pressure requirements in industry and Agriculture resistant to weathering and ozone. It is also readily used as a cover for cables and sharp edges of steel components in machinery and equipment. Working Temperature From -25°C to +80°C Short-term up to +100°C CONSTRUCTION Black colored rubber made of SBR synthetic rubber without reinforcement. SIGNING Hoses marked with a green stripe.

Working Pressure: 20 bar (2.0 MPa) |. Bursting Pressure: 60 bar (6.0 MPa) |. Available colors: black or blue | Working Temperature: -30°C to +80°C

CHARACTERISTICS Working Pressure - 20 bar (2.0 MPa) Bursting Pressure - 60 bar (6.0 MPa) Available colors - black or blue APPLICATION A versatile, flexible and lightweight hose for transferring oil, water, light chemicals and compressed air. Eagerly used for pneumatic tools, especially in highly oily environments. Hoses are weather and ozone resistant. Working Temperature From -30°C to +80°C CONSTRUCTION Designed according to Stomil Bydgoszcz WT-49/17-1/BZPG author's project. Inner layer High-quality oil-resistant NBR rubber compound. Reinforcement Braided with high-strength synthetic threads. Outer layer High quality black or blue colored synthetic rubber, resistant to oil, abrasion and weathering and ozone. Hoses surface is smooth. SIGNING Hoses marked with white paint.

Working Temperature: From -25°C to +80°C; short-term up to +100°C

APPLICATION Air Hoses for general use without pressure requirements in industry and Agriculture resistant to weather and ozone. Eagerly used as cable covers and lining of rollers or sharp edges of steel parts in machinery and equipment. Working Temperature From -25°C to +80°C Short-term up to +100°C CONSTRUCTION Black colored rubber made of SBR synthetic rubber without reinforcement.

Working Temperature: From -25°C to +80°C; short-term up to +100°C

APPLICATION Double rubber Air Hoses for general use without pressure requirements in industry and Agriculture resistant to weather and ozone. Working Temperature From -25°C to +80°C Short-term up to +100°C CONSTRUCTION Black colored rubber made of SBR synthetic rubber.

Working Pressures: from 88 to 225 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

APPLICATION Compact Hoses of general purpose used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 88 to 225 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 857 standard. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement One Wire Braided high strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: from 165 to 400 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

APPLICATION Compact Hoses of general purpose used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 165 to 400 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 857 standard. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 2 Wire Braided with high-strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: 125 to 415 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

APPLICATION General purpose Hoses used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 125 to 415 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 853, SAE J517 standards. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement 2 Wire Braided with high-strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.

Working Pressures: from 63 to 250 bar depending on diameter | Working Temperature: From -40°C to +100°C; short-term up to +125°C

APPLICATION General purpose Hoses used for: - hydraulic fluids complying with ISO 6743-4 except HFD R, HFD S, HFD T (from -40°C to +100°C), - aqueous solutions (from -40°C to +70°C), - water (from 0°C to +70°C), - compressed air (from 0°C to +80°C). They are not intended for fluids containing castor oil and esters. Working Pressures From 63 to 250 bar, depending on the diameter. Working Temperature From -40°C to +100°C Short-term up to +125°C CONSTRUCTION Complies with EN 853, SAE J517 standards. Inner layer Black colored rubber made of synthetic rubber resistant to oil and water. Reinforcement One Wire Braided high strength steel wire. Outer layer Black colored rubber made of synthetic rubber resistant to abrasion, oil, weather and ozone. For diameters from DN 6 to DN 19, it is possible to produce Hoses in a version coated with ultra abrasion-resistant Black Diamond coating (UHMWPE) with MSHA approval. Also check out HYDRAULIC HOSES: 1 SC, 2 SC, 1 SN, 2 SN, ETH 221, 3 SP, 2 TE i Car Wash Hoses.
